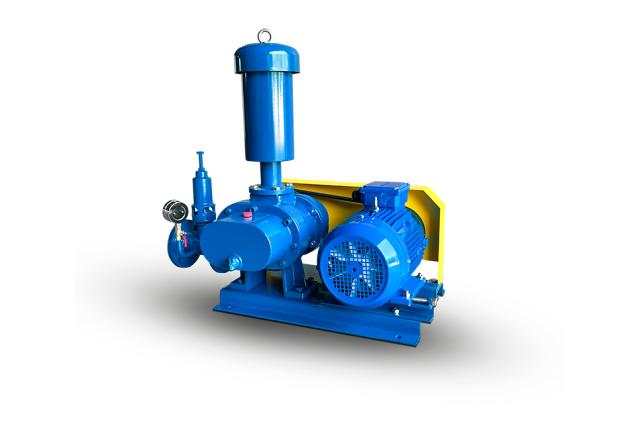

The Kleeblower 3 lobe Roots Blower is a high-performance roots blower with the possibility of synchronous operation up to 4000 rpm. High capacity and pressure vacuum, low vibrations, relatively quiet and a low weight are among the technical characteristics. Size of inlet-flange from 2,5” up to 12”. The roots blower can provide a max. pressure of 1 bar above atmospheric pressure. The difference between a roots blower for pressure and for vacuum is primarily the location of the silencer, the filter and the shut-off valve.

Features
• High efficiency – The rotor linear structure minimizes the area and improves blower capacity.
• Low vibration – Proper balancing of the rotor (g2,5) minimizes vibrations and thus noise.
• Pressure drop – the inline structure (inlet/outlet) reduces the pressure drop and optimizes the operation.
• Vacuum – the roots blower provides a vacuum of max. -6000 mmAq. On request it is available in a twochamber version and thereby achieve a vacuum of -6500 mmAq.

KLEEblower Roots blower catalogue
