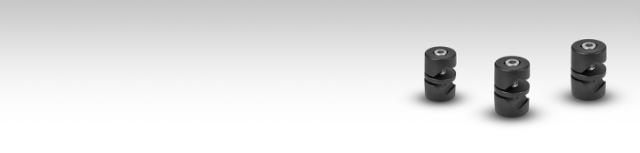

    E+G GN 490 Swivel Clamp Connector Joint



    Elesa+Ganter GN 490 Swivel clamp connector joint, twistable two-way. Twistable two-way clamp mountings GN 490 clamp the rods or tubes via a prism, allowing a greater Ø tolerance to be bridged. The pressure spring makes clamping and releasing easier.

    Material: Aluminium.
    Finish:
    - Version MT: matte finish, slide ground.
    - Version SW: RAL 9005 black colour,matte finish, epoxy resin coating

    Standard versions available:
    - Type A: with cylinder head screw DIN 912.
    - Type B: with adjustable clamping handles GN 300.1.

    Hexagon nuts: DIN 934 AISI 304 stainless steel.
    Insert/Distance bushing: AISI 303 stainless steel.

    The standard clamping bolts are socket cap screws DIN 912 in AISI 304 stainless steel.



    Please use the filter to find specific products. Need help? Call us at +45 43 86 83 33.

    16 out of 16 products
