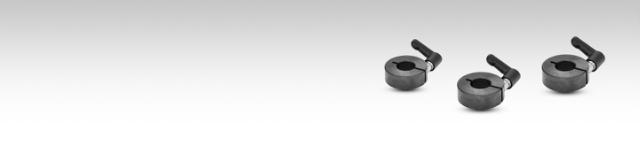

E+G GN 706.4 Shaft collar w/adjustable handle

Elesa+Ganter GN 706.4 semi split shaft collar with adjustable handle

Material
- Type ST: Black-oxide with vapor sintered steel
- Type AL: Aluminium ground
- TYpe NI: Stainless steel AISI 303

Adjustable handle
- Lever body, zinc alloy die-cast, RAL 9005 black matte finish, epoxy resin coating.
- with set screw AISI 303 Stainless Steel.

Semi-split set collars GN 706.4 can safely and simply be assembled i.e. with high clamping force without damaging the surface of the shaft. For size d1= 32 and 36, d3 is a through hole; starting from d1= 42 d3 is a threaded blind bore. These set collars not only serve as an end stop, but they can also be used for fixing or triggering other components such as end limit switches.
