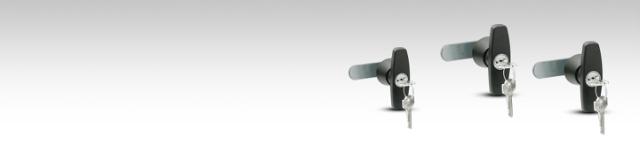

E+G Latch CSMT/CSMTU

Elesa+Ganter CSMT/CSMTU Latch.
Handle and stator: Glass-fibre reinforced polyamide based (PA) technopolymer. Resistant to solvents, oils, greases and other chemical agents.
Rotor: Chrome-plated zinc alloy.
Front plate: Stainless steel.
Nut: Technopolymer (M22x1.5).
Flat closing lever: Zinc-plated steel, thickness 3 mm.
Retaining washer: NBR rubber.
Self-tapping screw: Zinc-plated steel.
Two keys: Nickel-plated brass, removable in two positions at 180°.
Rotation 90° right.
Standard executions available:
- CSMT.: lock with 400 different combinations. Each lock has a key with different combination.
- CSMTU.: lock with one combination. All locks have a key with the same combination.
