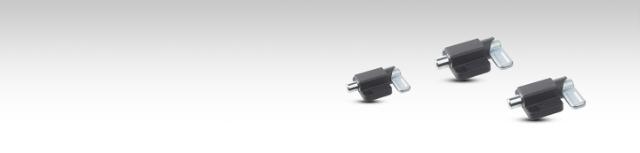

E+G GN 722.3 indexing plunger
Elesa+Ganter GN 722.3 Spring latch
Used when the indexing pin is temporarily not allowed to protrude. The indexing pin retracts by turning the latch by 180°. A lock notch will hold the latch in both positions.
Guide: Steel precision cast.
- Version ZB: zinc plated, blue passivated.
- Version SW: zinc plated, epoxy resin coating, RAL 9005 black matte finish.
Latch: Steel precision cast, zinc plated, blue passivated.
Plunger: Steel, zinc plated, blue passivated. Suggested matching hole with tolerance +0.1/+0.3.
- Type L: indexing curve on the left side.
- Type R: indexing curve on the right side.
Please use the filter to find specific products. Need help? Call us at +45 43 86 83 33.
