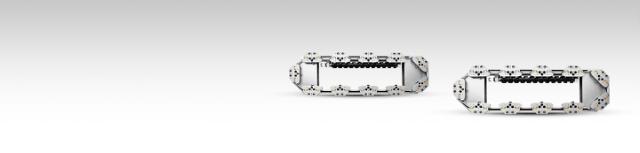

Hepco DTS2 high speed drives track system

Perfect for any component assembly line in all industries requiring a higher speed than the standard DTS system. Hepco DTS2 is a ready to fit scroll driven track system for high speed and rapid indexing applications requiring smooth movement. The scroll drive enables DTS2 carriages to accept high driving forces, allowing rapid indexing with high accelerations, and superior positional accuracy of +/-0.2mm, without the risk of carriage disengagement. The speed of the carriages is the same on the curved segments as it is on the straights, resulting in a consistent, smooth motion of up to 3m/s.

Reduced process cost enables complex production routing and disconnected processes to be contained within one single continuous loop. As a ready to fit system, DTS2 minimises design time and cost and is simple to install and operate. A carriage locking option aligns specific carriages to a repeatable position anywhere along any straight section of the circuit to +/-0.05 mm.

DTS2 can be installed horizontally or vertically and features an extremely small profile. Thanks to its design, equipment can be located inside or outside of the track shape, saving valuable production space. The superior drive strength of the DTS2 will not disengage the carriage from the drive in the event of an overload.

Hepco’s bleed lubrication system provides constant lubrication to the contact surface between the track and V bearings, eliminating the need to stop production lines regularly for re-lubrication. Suitable for hostile environments thanks to HepcoMotion’s V guide technology.

All components are individually adapted according to customer wishes.

Load up to 400N - Speed up to 3 m/s

Hepco DTS2 catalogue
