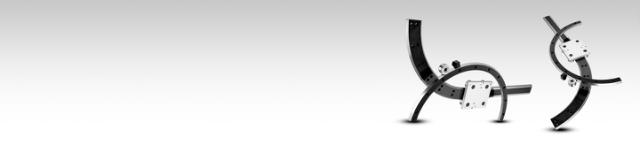

Hepco HDRT heavy duty ring guides and track systems

Hepco HDRT Heavy Duty Ring Guides and Track Systems offer all the inherent benefits of  PRT2 ring and track system, with the capability to carry much higher loads. Designed for high load rotary applications – Including cylinder or pipe inspections, scanning, or any application requiring precise, accurate peripheral guidance around a circular object for heavy loads up to 37.5kN for rings and 28kN for tracks.

HDRT is an alternative to slewing rings with less preparation, less installation time, and reduced maintenance, HDRT is an excellent alternative to slewing rings. Carriages with Hepco’s V bearings run smoother and need less driving forces than slewing bearings. HDRT has an integrated rack and pinion drive, negating the need for additional drive components.

Design freedom! When ring segments are combined with straight slide sections, many sizes and layouts of track systems are possible, including oval, square, rectangular, S bend, U shape, J shape, and many other shape configurations as required. Thanks to HepcoMotion´s V guide technology, the system is low maintenance, robust, hardwearing, and particularly suited to environments where a lot of debris occurs.

Perfect for large welding applications, as a transfer system for machine tool and automation components, or used to construct turntable solutions.

HDRT components are individually adapted according to customer wishes.

Load up to 28 kN (tracks) and 37,5 kN (rings) - Speed up to 5 m/s
