About Bonfiglioli
Since 1973 Brd. Klee is official Danish distributor of Bonfiglioli gears and gearmotors. We are Bonfiglioli BEST partner meaning that we assemble gears and gearmotors ourselves in our workshop in Albertslund, Denmark. If you want a geabox with a special coating or in an individual colour we can handle this.
We have our own technical department with Bonfiglioli specialists with years of experience and help you with dimensioning, calculations and 3D drawings.
Below is a selection of our Bonfiglioli gear range, but both Brd. Klee and Bonfiglioli can do much more than that. Therefore, contact us if you have any further questions or wishes.
Worm gears (VF- og W-gear)
We offer universal worm gears and gearmotors in the VF/W series. VF/W is known for its long operating lifetime and reliability. We supply worm gears assembled and fitted with ac motors.
Benefits Bonfiglioli VF/W worm gears:
– Cost effective
– Low noise
– High peak load capacity
– Minimized mounting space
– Long operating life
– High reliability
Options:
– ATEX gearbox for explosive environments 2G/2D
– Up to C5 Surface protection
– Short flange & reinforced bearings
– Torque arm
– Fluoroelastomer oil seals
Torque range: 13 … 7.100 Nm (115 … 62.840 in-lb)
Gear ratios: 7 … 100
Power range: 0,04 …75 kW

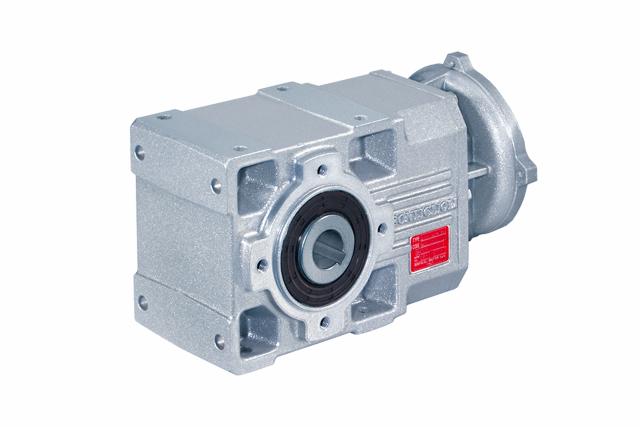

Bevel helical gear units type A
Our series of Bevel helical gear units is called A-gears and is offered with torque from 100 to 14,000 NM.
The A series combines high efficiency and reliability, low maintenance costs and a wide torque range. The right-angled layout between INPUT and OUTPUT makes the A series particularly compact. The A series can be combined with a wide range of Bonfiglioli electric motors: Asynchronous motors both IEC and compact (BN-BE-BX/M-ME-MX), servo motors (BMD) and reluctance motors (BSR) can be connected to the A series.
Options:
– ATEX gearbox for explosive environments 2G/2D
– Surface protection up to C5
– Reinforced bearings
– Special seals and double seals
– Reduced Backlash
– Torque Arm
Torque range: 100 … 14.000 Nm (885 … 123.910 in-lb)
Gear ratios: 4,9 … 1.715
Power range: 0,22 …150 kW
Output: Foot and shaft mounting with two holes per size shaft, hollow shaft with groove, hollow shaft with shrink disk.

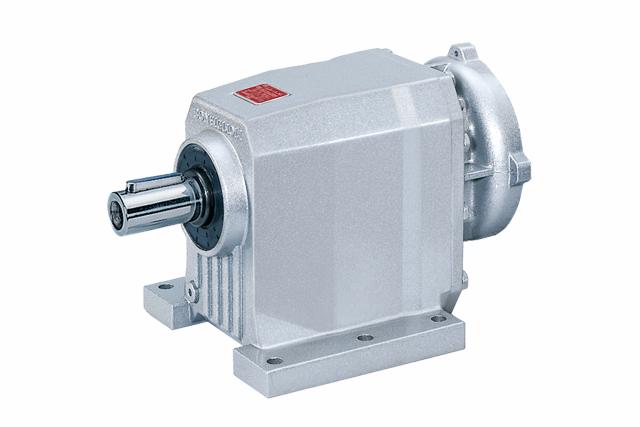

Helical gear units type C
Bonfiglioli's helical gear range is called C-gear and is synonymous with first-class reliability, efficiency, robustness and a wide output torque range. The extremely wide range of gear ratios, achieved through 2-, 3- or 4-speed versions, allows to adapt the C series to any application and find the optimal solution for the output speed requirements. The design is space-saving. The C series can be combined with a wide range of Bonfiglioli electric motors, e.g. asynchronous motors both IEC and compact (BN-BE-BX/M-ME-MX), servo motors (BMD) and reluctance motors (BSR) can be connected to the C series.
Options:
– ATEX for explosive environments 2G/2D
– Surface protection up to C5
– Double oil seals
– Special seals
– Reduced Backlash
Torque range: 45 … 12,000 Nm (398 … 106,208 in-lb)
Gear ratio: 2.6 … 1,481 Power range: 0.09 … 213 kW
Foot or flange mounting, B14 flange

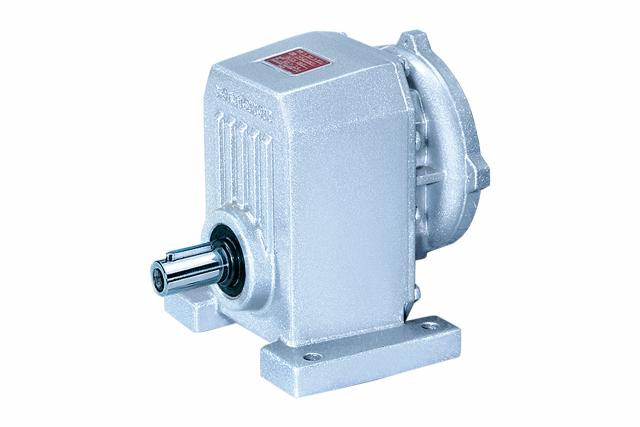

Single stage pinion gear type S
Bonfiglioli S-gears are compact and robust single-stage pinion gears. The design makes the series suitable for e.g. pump, fan and blower applications. To meet the needs of customers in these sectors, the S series is also available in foot or flange versions and can be combined with Bonfiglioli electric motors, such as asynchronous motors both IEC and compact (BN-BE-BX/M-ME-MX) and reluctance motors (BSR).
S-gear is a cost-effective solution that requires minimal space.
Options:
– Surface protection up to C5
– Special seals
Torque range: 21 … 200 Nm (185 … 1,770 in-lb)
Gear ratio: 1.4 … 13.1
Power range: 0.09 … 11.6 kW
Foot or flange mounting

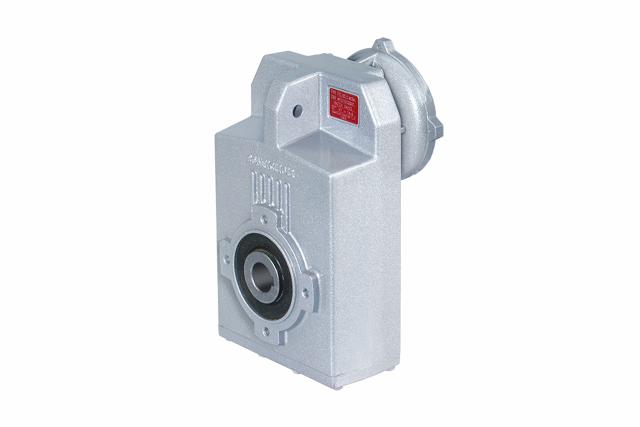

Shaft mounted gear units type F
Bonfiglioli's F series of spur gears/shaft gears are compact and robust with high torques.
Options:
– Special designs on request
– Low temperature model
– High temperature model
Torque range: 13 .. 3,000 kNm (9,588 ... 2,212,686 ft-lb)
Gear ratio: 19 … 989
Input speed up to 4,000 rpm

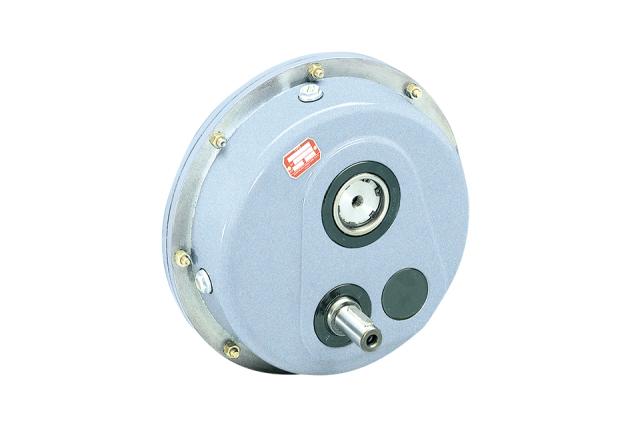

Shaft mounted gear units type TA
Shaft-mounted gear and geared motors in the TA series are suitable for harsh environments such as gravel pits and quarries, where reliability and low maintenance are key factors. TA gears are also very compact in relation to their performance. Options include stops that prevent reverse travel in the case of inclined conveyors. TA gears can be combined with a wide range of Bonfiglioli electric motors, e.g. asynchronous motors, both IEC and compact (BN-BE-BX/M-ME-MX).
Options:
– Special seals
– With stops
Torque range: 150 … 16,000 Nm (1,327 … 141,611 in-lb)
Gear ratio: 5 … 33.2
Transferable mechanical power up to 226 kW
Bonfiglioli planetary gears Series 300
Bonfiglioli Trasmital series 300 gears are compact and extremely strong planetary gears. Really suitable for heavy duty tasks. Configurable in thousands of variants. Available with hydraulic input and with various motors mounted.
Torque range: 1250 … 1,286,000 Nm
Gear ratio: 3.4 … 5,234
Heavy duty series HDO bevel gears and HDP parallel shaft gears
Bonfiglioli HDO bevel gears and HDP parallel shaft gears are Bonfiglioli's powerhouses used in industrial applications.
Options:
– Valve cooling, cooling coil or oil heater
– External cooling unit and temperature and oil level sensors
– Integrated oil trap that prevents oil spillage
– Taconite seal
– ATEX certification for explosive environments.
Common to both series:
– Single/dual input shaft (metric or inch)
– IEC and Nema motor adapter
– Motor adapter with elastic coupling
– Hollow shaft with keyway or shrink disc
Bonfiglioli HDP parallel shaft gearbox:
Torque range: 5,190 Nm (HDP 60) … 209,900 Nm (HDP 180)
Bonfiglioli HDO bevel gear: Torque range: 8,990 Nm (HDO 71) … 209,900 Nm (HDO 180)
Contact us for further information.
