General info about toggle clamps
We sell the complete range of toogle clamps from Elesa+Ganter.
What is a toogle clamp?
Toggle clamps, power clamps, pneumatic fastening clamps, hook clamps, toggle latches and pull clamps lock components quickly and safely. Toggle clamps are typically permanently fixed to the work surface using a mounting, either directly or using a template. They are available in many different varieties to fit all industrial applications requiring high clamping forces.
Where are toogle clamps used?
In all applications where there is a need for quick and safe opening and locking of a component.
Types and materials
Elesa-Ganter clamps are available in the following types:- Vertical and horizontal
- Push and pull types
- Latch clamp
- Pneumatic clamps
- Power clamps
The clamps are available in galvanized/electro-galvanized steel, as well as polished or stainless steel.
Vertical clamp
A vertical clamp has a operating lever when the handle is locked when in vertical position.
Example of this type: GN 810
Example of this type: GN 810
Horizontal clamp
A horizontal clamp has a operating lever that is locked in horizontal position.
Example of this type: GN 820
Push and pull clamp
A push and pull clamp is characterized by the lever pulling and pushing the pin from open to locked position.
Example of this type: GN 841
Example of this type: GN 841
Latch clamp
A latch clamp is characterized by having some form of hook/buckle that can engage a barb, and then be clamped in and locks the component.
Example of this type: GN 851
Example of this type: GN 851

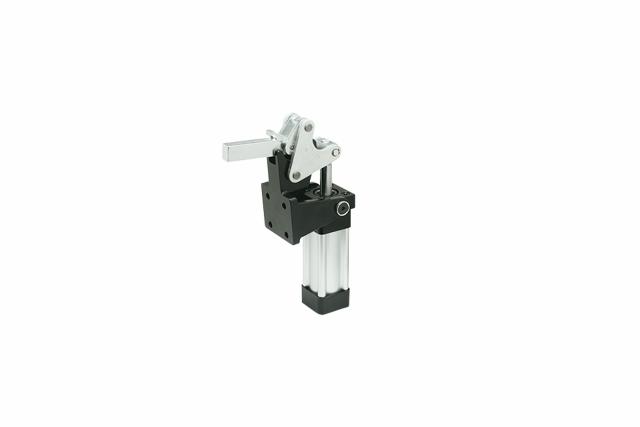

Pneumatic clamp
These clmaps are, as the name indicates, simply a clamp, where instead of manual force, pneumatics are used to open and lock the component. These are available in both horizontal and vertical versions.
Example of this type: GN 863
Example of this type: GN 863

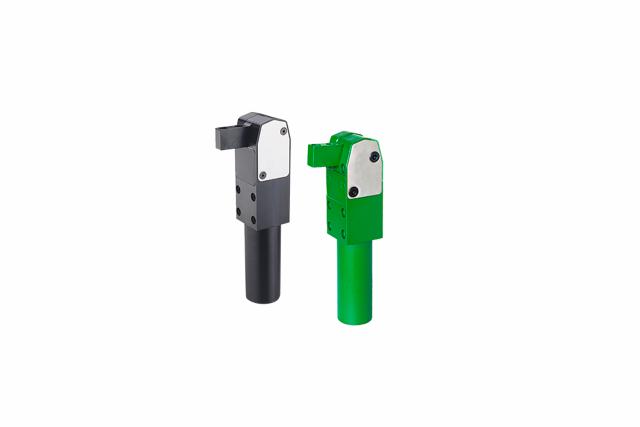

Power clamp
Power clamps are also pneumatic clamps, although these are smaller in size but have a very large clamping force and use far less air. These are also available in vertical and horizontal versions.
Example of this type: GN 864
Example of this type: GN 864
Need help?
If you do not find the right clamp for your application here on this page, or if you need guidance, then you are welcome to contact us.
