General info about Stabilus gas springs
Brd. Klee is Danish importer and distributor of gas springs from the market leader Stabilus. Stabilus began production of the world's first gas spring in 1961. Stabilus is the world's largest manufacturer of gas springs and supplies these to leading manufacturers in automotive, aircraft, marine and machine industries, as well as for furniture and houshold appliances. Lift-O-Mat, Stab-O-Shoc and Bloc-O-Lift are all Stabilus brands.
How does a gas spring work?
A gas spring works with gas which raises, lowers, or moves with a damping function.
1. The pressure pipe and piston rod connection is selected from the standard program.
2. The gas spring is fitted with a labyrinth valve for speed and damping regulation.
3. The piston rod is manufactured with maximum surface fineness for perfect feed.
4. Pressure pipes are filled with nitrogen.
It is recommended to mount the gas spring so that the piston rod faces downwards when extended. This allows lubrication of the gasket and piston rod during use. The gas spring is supplied as standard with an eye connection or with a ball head and pin. When installing, ensure that the gas spring is not under tension or exposed to lateral influences. Likewise, the piston rod must be protected against impacts and impurities such as welding and paint splashes.
Gas spring temperature range
The pressure of the gas spring is always stated at 20°C. The gas inside the gas spring changes volume depending on the surrounding temperature. At temperatures above 20 °C, the pressure increases. At temperatures below 20 °C, the pressure drops. Pay attention to power loss and power increase with temperature changes, respectively. Stabilus gas springs can work in the temperature range from -30 to +80 °C.
If gas springs are stored over a longer period, at best in the assembled state, adhesion may occur with pressure loss as a result. It is therefore recommended to activate the gas springs at regular intervals.

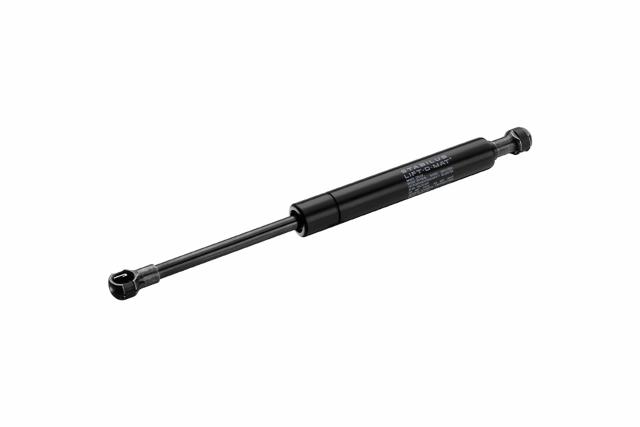

Stabilus Lift-O-Mat
Lift-O-Mat extension/standard gas springs are used for doors and hatches in machine construction, medical, furniture etc. They are supplied with welded-on end pieces ready for use.
Stroke: 20 – 500 mm.
Pressure: 50 – 5200 N
End pieces: Eye/Eye, angle/angle or eye/eye
Material: Steel (black) or stainless steel AISI304 or AISI316 / DIN EN 100 88-1.
Contact us for help with calculation and dimensioning.

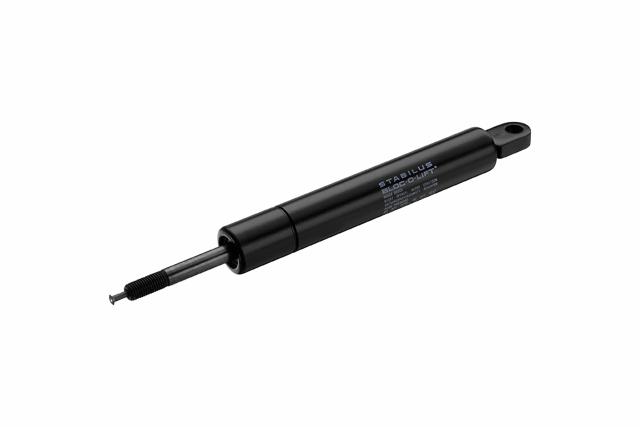

Stabilus Bloc-O-Lift
Bloc-O-Lift locking gas spring for precise stepless positioning. E.g. for carrying carriages, bed supports, massage tables, backrests and for chair positioning. Standard stroke: 20 – 250 mm. Pressure: 200 – 1400 N. Material: Steel (black).

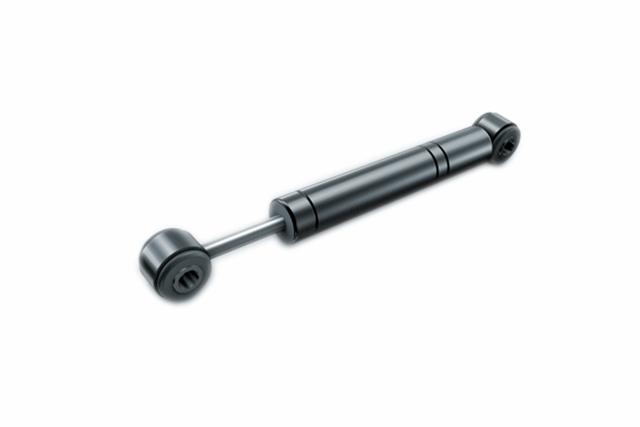

Stabilus Stab-O-Shoc
Stroke: 20 – 400 mm.
Material: Steel (black).

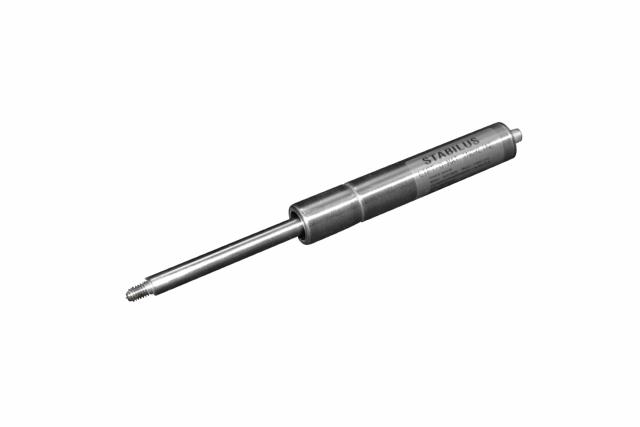

Stainless steel Lift-O-Mat
Stainless steel push-out/standard gas spring for doors and hatches. Supplied with welded-on end pieces.
Stroke: 20 – 500 mm.
Pressure: 50 – 5200 N
Material: AiSi316.
Stabilus Stab-O-Mat & Stab-O-Bloc
Stab-O-Mat chair gas springs for targeted and quick height adjustment of office chairs.
Stroke: 150 – 500 N.
Standard diameter of 40, 45, 50 mm.
Stab-O-Bloc are blockable gas springs for e.g. backrest.

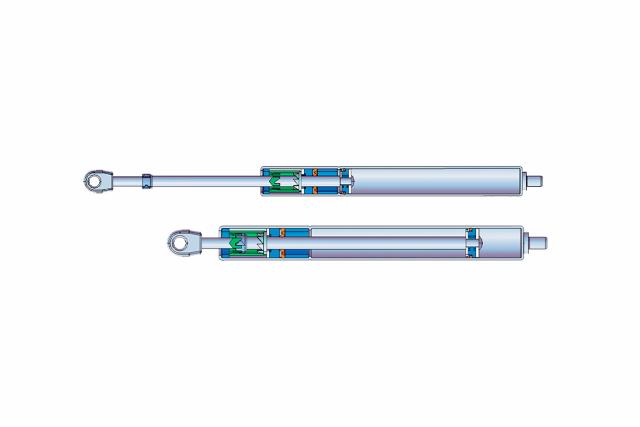

Stabilus Lift-O-Mat PTL
Lift-O-Mat PTL hydraulic damped gas spring. The spring has an additional mechanical lock in the compressed position, which is released by pressure.
Stroke: 100-400 mm.
Length: 309-905 mm.
Pressure: 100-400 N.
Material: Steel (black)
How to order a gas spring?
It is not difficult to reorder a Stabilus gas spring. On all original Stabilus products, a unique type number and stroke are indicated. The type number always consists of six characters, either six digits or four digits and two letters. In the example below, the type number is: O85O81.
By providing the type number, the dealer can easily identify the product in question, and you are guaranteed the right item.
Need help?
If you do not find the desired gas spring on these pages, or if you need guidance, then you are welcome to contact us.
